New Tata Bolt 1.2T Petrol & 1.3 Diesel: Tech Specs & Features

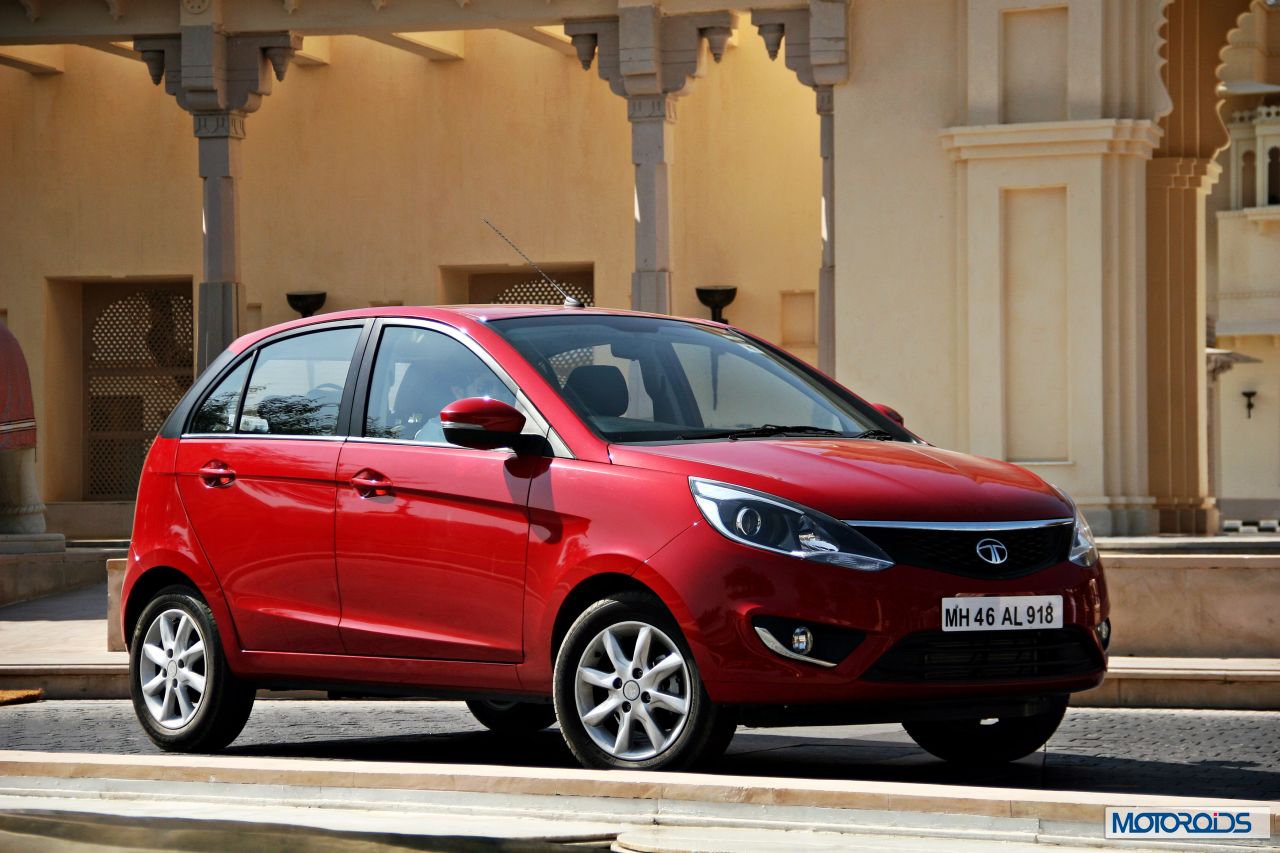

Tata Bolt (76)

After the success of their Zest sedan, Tata Motors is about to launch a very important product in their portfolio, the Tata Bolt hatchback. According to the manufacturer, the name Bolt signifies speed and represents an attitude of winning and staying ahead. It is embodied in the all-new Bolt in aspects of design, the way it drives and the features it offers. The design of the Bolt puts forth the manufacturer’s new design semantics which is a culmination of their best ideas from their three design studios based in Pune, Coventry and Turin. Tata has designed the Bolt to convey a forward pouncing stance and has included flowing lines to create the illusion of movement even at standstill. The Bolt comes fitted with a spoiler and a blacked out C-pillar that creates the impression of a floating roof.

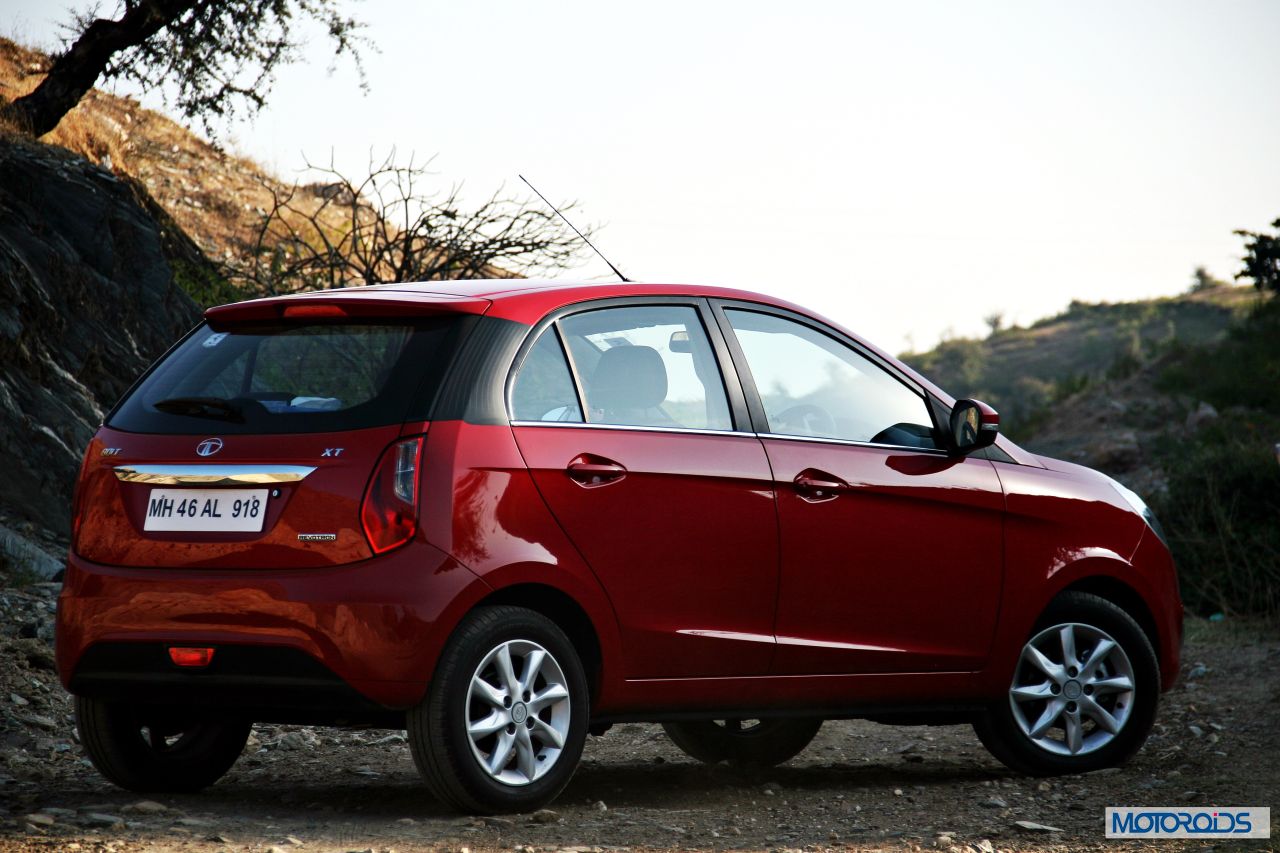

Tata Bolt (67)

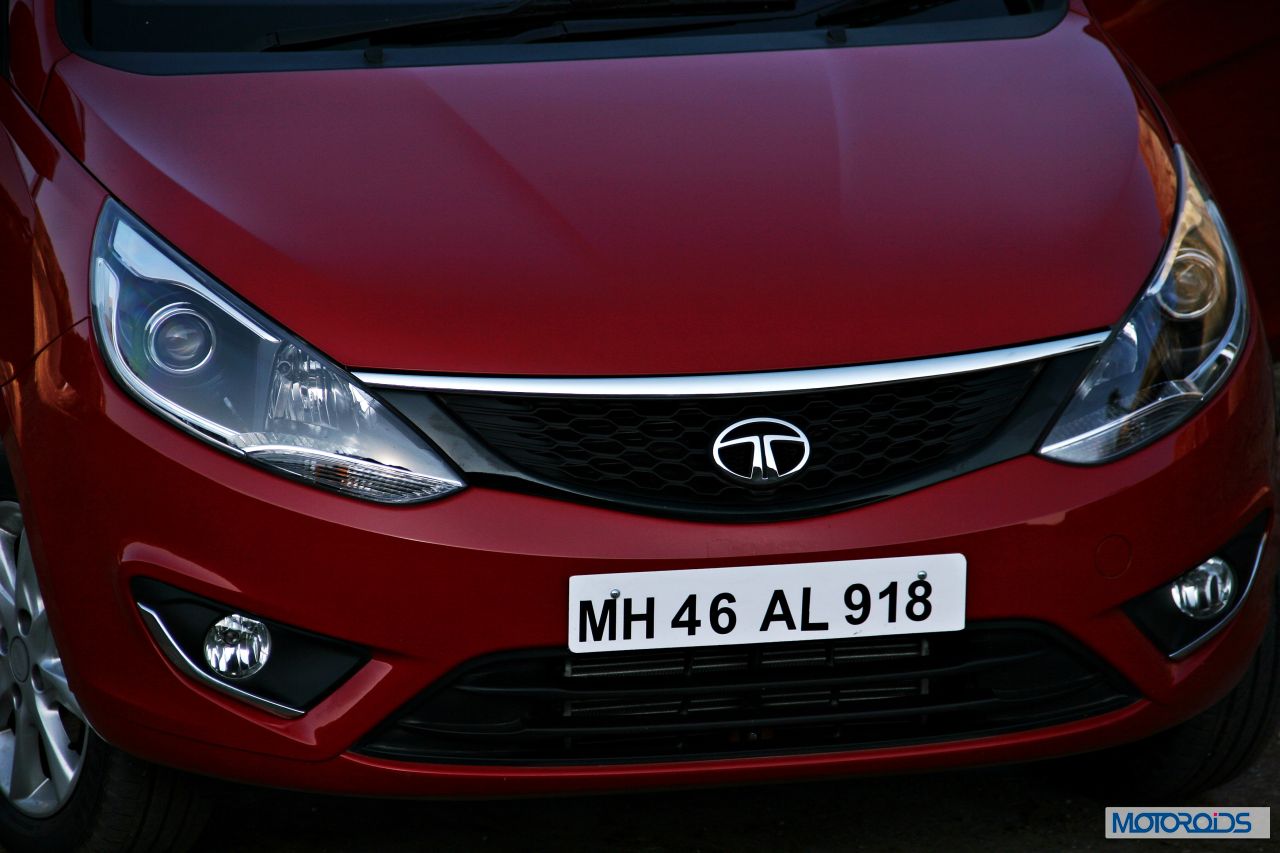

Tata Bolt (74)

To be made available in both Petrol and Diesel formats, the Tata Bolt petrol will be the segment’s first hatchback to be powered by a turbocharged, 1.2-litre MPFI engine that will be equipped with selectable driving modes while the Diesel version will be powered by a 1248 cc, 4-cylinder turbocharged engine. Tata hasn’t skimped on safety and has equipped the car with ABS, Corner stability control and Airbags. It will also feature a touchscreen multimedia system by Harman that will recognize voice commands, play videos, read out SMS notifications, include touch control for the air-conditioner and smart phone based navigation via mapmyindia. The Bolt will also come fitted with first-in-segment smoked projector headlamps. So let’s take a look at the tech specs and features of a car that Tata hopes will strike the market like a bolt of lightning and set their sales chart on fire.

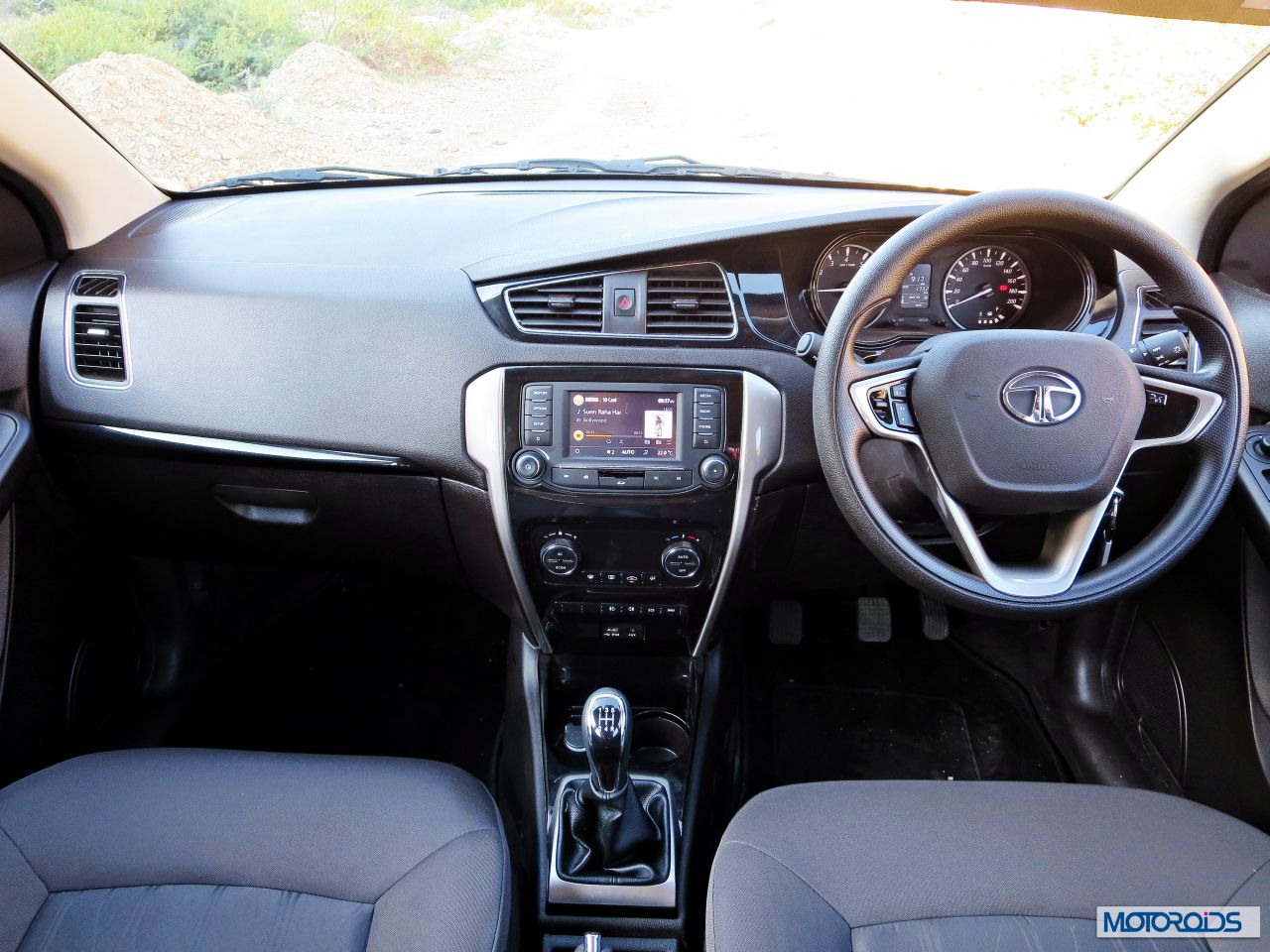

Tata Bolt (11)
                                                       Tata Bolt 1.2T Petrol & 1.3 Diesel
Engine typeRevotron 1.2T petrol engine, 4cylinder, Turbocharged, MPFI with selectable driving modes4 Cylinder, Turbocharged, Intercooled Diesel engine
Cubic capacity1193cc1248 cc
Made ofHead: Aluminium alloy, Block: Cast IronHead: Aluminium alloy, Block: Cast Iron
InstallationTransverse, Front wheel driveTransverse, Front wheel drive
Max Power90 PS @ 5000 RPM75 PS @ 4000 RPM
Max Torque140 Nm @ 1500-4000 RPM190 Nm @ 1750-3000 RPM
Bore/Stroke75 mm x 67.5 mm69.6 mm x 82 mm
Compression Ratio9(+-0.3):117.6 (+/-1):1
Valve GearSOHC 2 valves/cylinderDOHC 4 valves/cylinder
Engine ManagementECU ControlledECU Controlled
Chassis and Body

ConstructionHatchback, 5-door, MonocoqueHatchback, 5-door, Monocoque
Kerb weight1095 – 1125 kgs1132 – 1160 kgs
Wheels15 inches15 inches
Made ofAlloysAlloys
Tyre size / Type175/65 R15+ Tubeless, Goodyear Assurance175/65 R15+ Tubeless, Goodyear Assurance
Exterior Dimensions

Overall Length3825 mm1695 mm 1562 mm
2470 mm
1450 mm
1440 mm
165 mm (Unladen)
44 litres
Max. width
Overall Height
Wheel Base
Track Front
Track Rear
Ground Clearance
Fuel Tank Capacity
Transmission

TypeTA65*Synchromesh with overdrive, 5 Forward + 1 ReverseFIAT EVO-II, Synchromesh with overdrive, 5 Forward + 1 Reverse
Ratios

1st3.643.91
2nd1.952.24
3rd1.271.44
4th0.881.03
5th0.7140.77
Reverse3.583.91

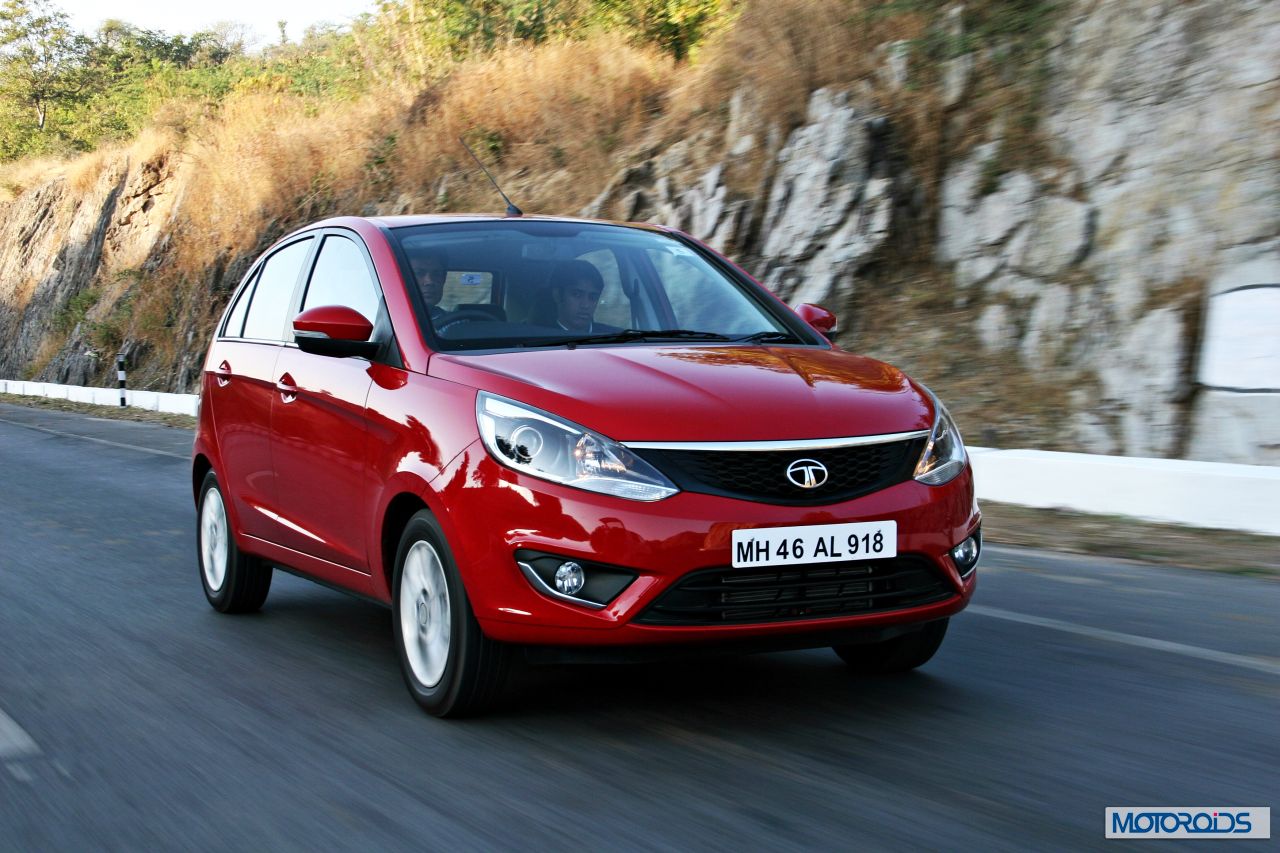

Tata Bolt (37)

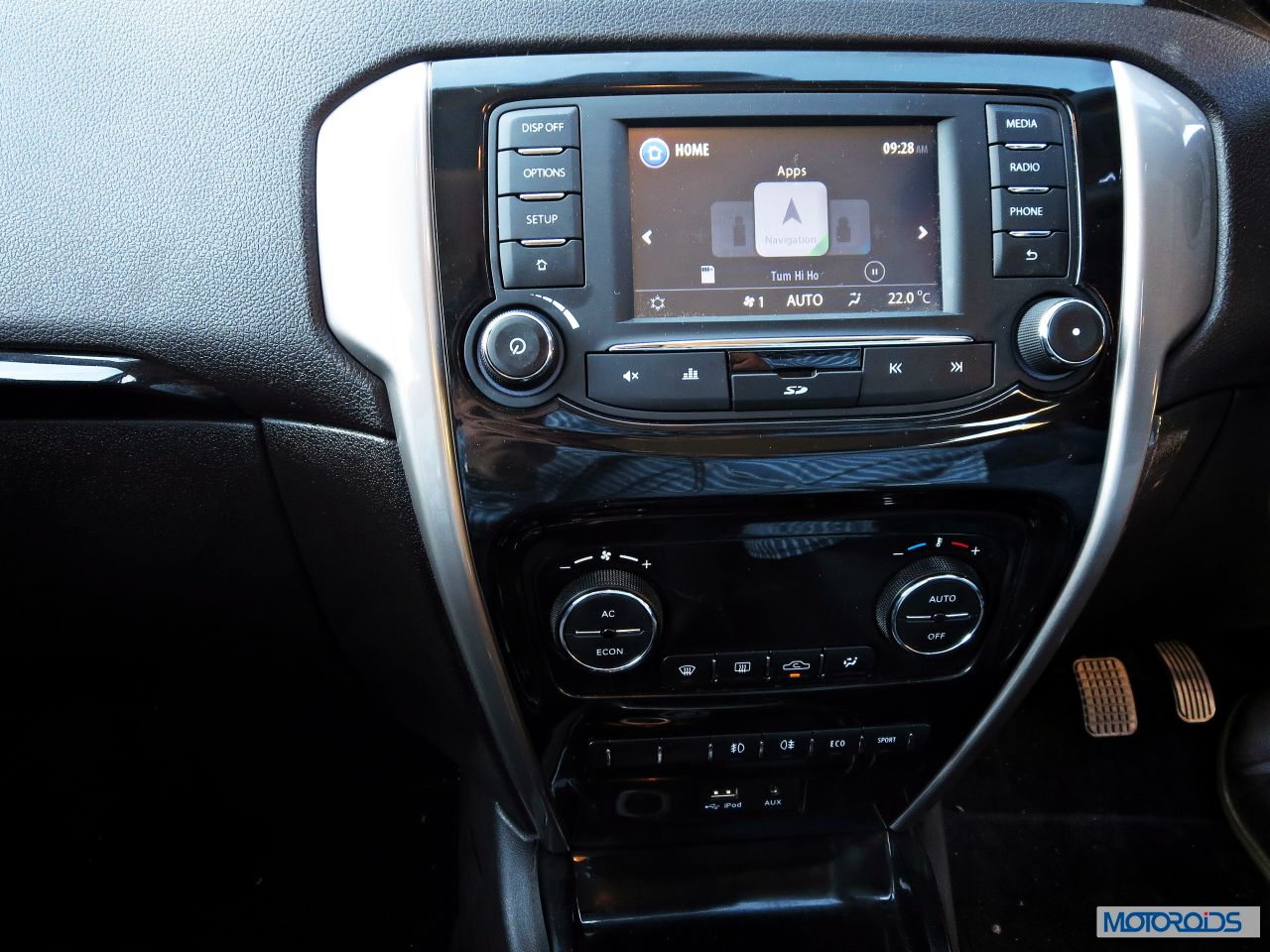

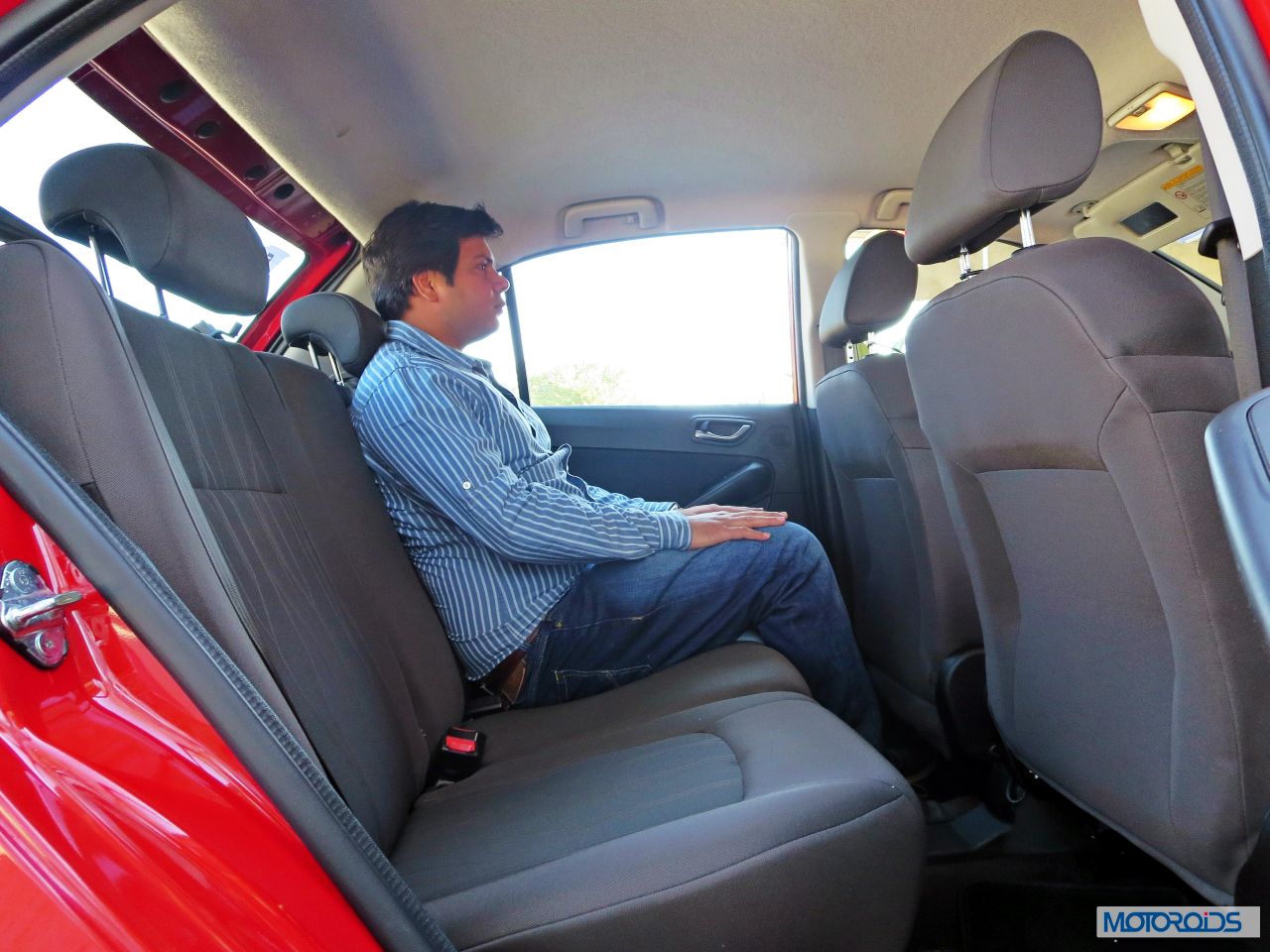

Tata Bolt (16) Tata Bolt (25)
Suspension
FrontIndependent; Lower wishbone; McPherson Strut with anti-roll bar and coil spring
RearSemi-independent; Twist beam with coil spring and shock absorber
Steering
TypeElectronic Power Assist
Turning circle radius5.1 m
Steering wheel diameter360 mm
Brakes
FrontDisc Brakes
RearDrum Brake
Parking brakesMechanical cable operated
Anti-lock with EBDYes (With corner stability control)
Safety Features
Seat BeltFront – 3point seat belt, rear outer – 3 point belt and center – lap
AirbagDriver and front Passenger
Central LockingYes, with remote
Speed sensing door lockYes
Clutch LockYes
Inside Rear view mirror with Day / Night featureYes
Burglar AlarmYes
ImmobilizerYes
Driver Assistance
HeadlampsProjector Type (“Follow-me”, remote key operated)
Fog LampsFront & Rear
Turn indicators on ORVMYes (LED Type)
Tail-lampsSignature type (Bulb)
Rear De-foggerYes
Interiors
SeatsFull fabric, Rugby Shoulder Seats
DashboardJava Black Shade
Interior Illumination1 front  + 1 boot
Theatre DimmingYes
Door PocketsAll 4 doors
Rear Parcel TrayYes
Boot Space210 litres
Chrome FinishGear knob, AC vents, centre console switches
Storage in center consoleCup holder, under storage drawer – passenger side
Instrument Panel and Center Fascia Display
TachometerYes
Warning & IndicatorsIndividual door open display, In-gear and shift indicator, low fuel, driver seatbelt reminder
Multi-information Display (MID)Digital Clock, dual tripmeter, outside temperature, instantaneous fuel consumption, average fuel consumption, Distance-to-empty, drive mode indicator for sport and eco
Audio
SystemConnectNext Touchscreen Infotainment by Harman
Multi-media touch ControlledYes
Speakers8, Front(2 speakers + 2 Tweeters) Rear (2 Speakers + 2 Tweeters)
AUX & USBYes
Bluetooth ConnectivityYes
Steering wheel mounted controlsYes (Phone + Audio)
Voice RecognitionYes
Video play-backYes (Via USB & SD card)
Smartphone based NavigationYes (For Android OS)
Other Convenient Features
Auto ACYes (With controls on Touch screen Infotainment)
Foldable KeyYes
Roof AntennaYes
Vanity MirrorsPassenger Side
Power OutletYes
AC with climate controlYes
Power WindowsFront + Rear + Auto Down (Driver Side) + with delay function
Outside MirrorsInternally Electrically Adjustable
Tilt Steering`Yes
Adjustable HeadrestYes (All 4)
